Description

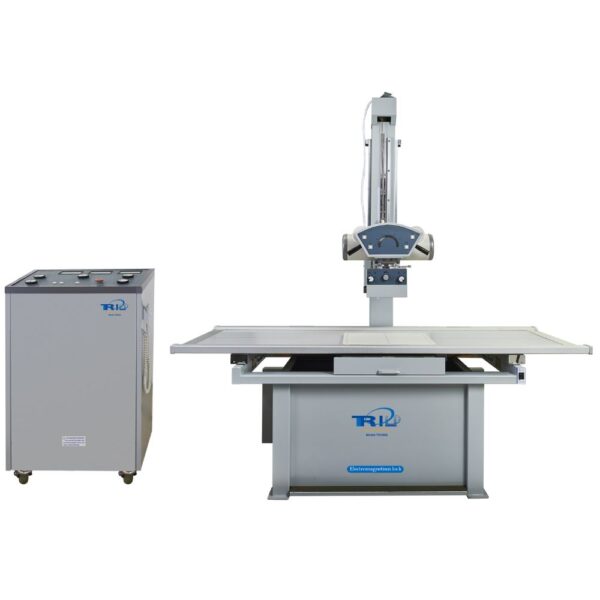

1. Model: TR-300A
2. Brand: Triup
3. Orgin: China
Features
• Whole-body can do multi-angle photography, easy to operate, KV, mA, s can be subsection, grading and interlocking protection
• Equipped with mA, kV and s interlocking protecting device of subsections and grades.
• Equipped with the protection device of X-ray Filament manostat, space charge compensation & anode start
• Transverse moving of upright post, lengthways moving of arm rotation of X-ray tube unit are all equipped with electromagnetism braking device
• Diagnostic bed, which is equipped with electromagnetism braking device, can move not only transversely but also lengthwise
Specification
■ 300mA 125kV
■ Radiography with four side moving table-face
■ Max. size of cassette for Radiographic clip: 17″x17″
■ Small focus: 1x1mm2, big focus: 2x2mm2
